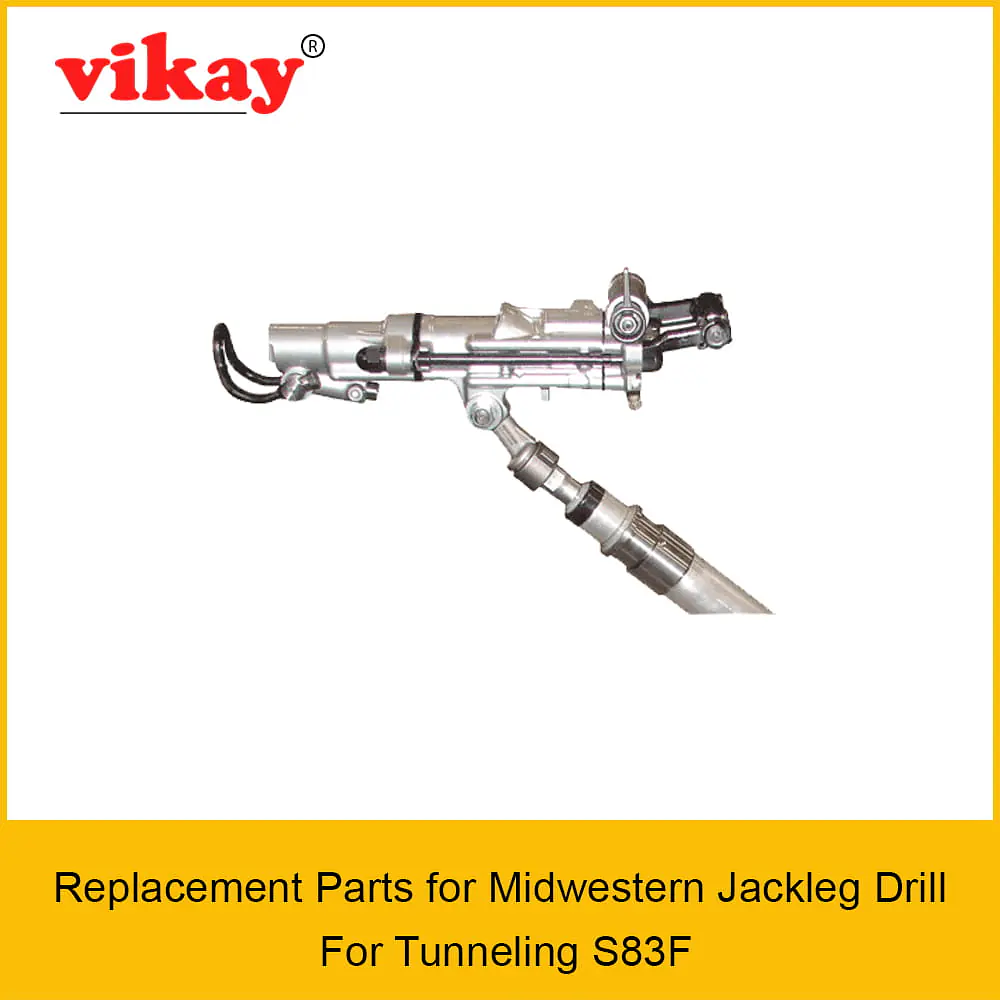

Replacement Parts for Midwestern Jackleg Drill For Tunneling S83F
Vikay Mining Equipments is a global supplier of new aftermarket replacement Parts for Replacement Parts for Midwestern Jackleg Drill For Tunneling S83F from India
Product
Midwestern Jackleg Drill For Tunneling S83F
| Cat. Sl. No | Description | Ref Part No. | |
| 1 | AIR TUBE | RB83147 | |
| 2 | SWIVLE SPUD | RB83146 | |
| 5 | BACK HEAD | S63F2 | |
| 7 | THROTTLE VALVEÂ | S83F12B | |
| 8 | THROTTLE HANDLE | S58F12E | |
| 12 | DETENT | 72A | |
| 14 | Control Handle | S83F114 | |
| 20 | RETAINER | S83F120 | |
| 26 | SPRING | S83F117 | |
| 35 | WATER CONNECTION NUT | S4813E | |
| 37 | GLAND ASSY( Includes OR18 O Ring) | D83N40 | |
| 38 | O-RING | OR18 | |
| 39 | POPPET VALVE ASSY.( Includes OR3 and OR 18 O Rings) | D83N41 | |
| 40 | O-RING | OR3 | |
| 42 | CAP (Stainless Steel) | D83N42 | |
| 52 | RATCHET RING | S83F3335 | |
| 54 | PAWL | R9111A | |
| 55 | Pawl Plunger | S5511C | |
| 56 | AUTOMATIC VALVE | S83F16 | |
| 57 | VALVE CHEST | S83F15 | |
| 58 | VALVE PLUG | S83F15B | |
| 59 | VALVE CHEST PIN | S83F15D | |
| 61 | HAMMER/PISTON | 1S83F9 | |
| 62 | RIFLE NUT | S83F2528 | |
| 63 | CYLINDER | S83F1T | |
| 65 | CYLINDER BUSHING | S83F1B | |
| 66 | LINER | S53F1L | |
| 67 | CHUCK DRIVER | S58F7DA | |
| 68 | CHUCK NUT | S63F7N | |
| 70 | CHUCK END | 1040906 | |
| 81 | SIDE ROD | S83F3 | |
| 83 | SIDE ROD NUT | S583N | |
| 89 | THROTTLE HANDLE KEY | S58F12K | |
| -- | PIN |
