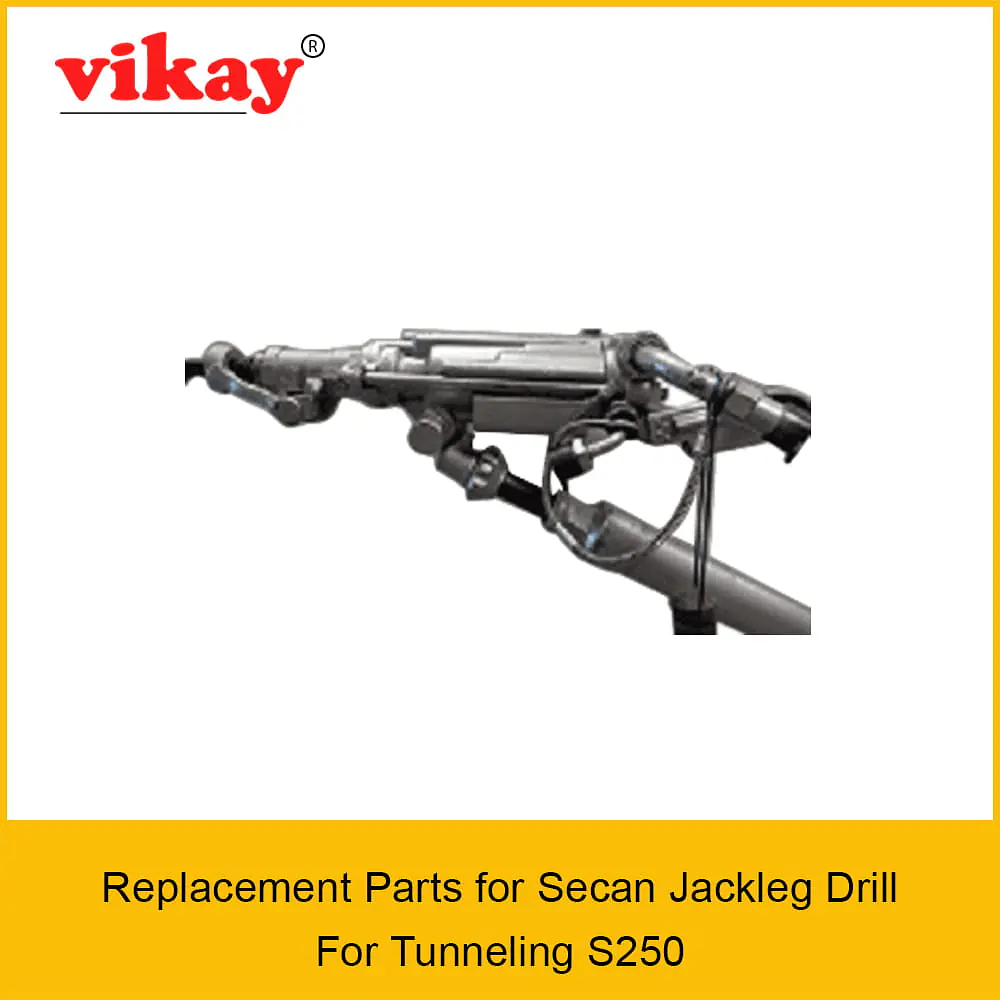

Replacement Parts for Secan Jackleg Drill For Tunneling S250
Vikay Mining Equipments is a global supplier of new aftermarket replacement Parts for Secan Jackleg Drill For Tunneling S250 from India
Product
Secan Jackleg Drill For Tunneling S250
| Cat Sl.No | Description | Ref. Part No. | |
| 2 | Water Valve Spring Cap | C1521-PC1 | |
| 3 | O Ring (164231) | 164-231 | |
| 4 | Water valve Spring | D1406 | |
| 5 | Valve Poppet | C1522-PC1 | |
| 8 | Housing Water Valve | B1181-PC4 | |
| 10 | Water Valve Seat Retainer | C2144 | |
| 11 | Water Tube Spacer | D1674 | |
| 12 | Water Tube | C1574A | |
| 13 | Seat, Water Tube | D1675 | |
| 14 | Side Rod | C1572A | |
| 15 | Throttle valve Handle Nut | D1385 | |
| 16 | Disc Spring | 149-16 3MT | |
| 17 | Throttle Valve Handle | C1509 | |
| 18 | Throttle valve Key | D1384 | |
| 19 | Throttle Valve | B1176 | |
| 20 | Side Rod Nut | D1388 | |
| 21 | Back Head | A660 | |
| 22 | Plunger, Throttle | D1383 | |
| 23 | Throttle valve plunger Spring | D1382 | |
| 24 | Plug (screw) | 242-2P | |
| 25 | Air Bend | C1525N | |
| 26 | Air Bend Copper Washer | D1601 | |
| 27 | Air Bend Nut | C1526 | |
| 28 | Air Line Cap(Rubber cap) | C1811A | |
| 29 | Air Inlet Screen(Stainer)) | 355538 | |
| 31 | Hose Spud | 1356588 | |
| 32 | PAWL | D1381A | |
| 33 | Pawl Plunger (Steel) | S21-34 | |
| 34 | Pawl Plunger Spring | D1611-C | |
| 35 | Rifle Bar | B1173 | |
| 36 | Ratchet Ring | B1170 | |
| 37 | Valve Box Pin(D1397) | S21-28 | |
| 38 | Valve Box | A745 | |
| 39 | Inner Valve | C1648 | |
| 40 | Valve Plug | A744 | |
| 41 | Spindle Nut(Nylock Nut) | 1218UF | |
| 42 | Disc Spring | 149-12-2MT | |
| 43 | Sellok Pin-Long(inner) | 300-8-22 | |
| 44 | Sellok Pin-Short(Dowel Pin) | 300-8-8 | |
| 45 | Twist Grip | C1518 | |
| 47 | Control Body | B1180 | |
| 48 | Control Spindle | B1183B | |
| 51 | Operating handle | A697B | |
| 52 | Retract Valve | C1514 | |
| 52 | Sleeve Valve | C1515 | |
| 53 | Plunger Spring | D1424 | |
| 54 | Sleeve spring | D1425 | |
| 55 | Plug Plunger | D1427 | |
| 60 | Operating Handle Adapter Nut | D1454 | |
| 61 | Nut Water Stem | S21-41 | |
| 62A | Water Stem Threaded | C1809 | |
| 63 | Water Stem Thrust Washer | S24-87 | |
| 64 | Seal Water Inlet | D1402 | |
| 65 | Water Inlet Screen | C1272 | |
| 66 | Water Inlet Adapter Spud | 1358356 | |
| 67 | water Stem Cap-Rubber Cap | C1811W | |
| 68 | Cl. Body Spindle Nut- Nylock Nut | D1982 | |
| 69 | Clevis Body | A693A | |
| 71 | Clevis Body Spindle Cone | D1398 | |
| 72 | Pin Spindle Locating | B1182A | |
| 73 | Lock Washer Key | D1426 | |
| 74 | Cylinder Lug Bushing | C1523 | |
| 75 | Rilfe Nut | C1508 | |
| 76 | Piston | B2334 | |
| 79 | Front Cylinder Washer Liner | C1517 | |
| 81 | Spindle Thrust Washer | D1392 | |
| 82 | Spindle Spring | C1571 | |
| 83 | Spindle Lock Washer | C1519 | |
| 84 | Spindle Nut | C1527 | |
| 85 | Chuck Nut | C1512 | |
| 87 | Rotation Chuck. | B1178 | |
| 88 | Front Head | A2598 | |
| 90 | Steel Retainer Pin Nut(D1932) | 12812UF | |
| 91 | Steel Retainer | A2599 | |
| 92 | Steel Retainer Pin | C6908 | |
| 93 | Chuck Insert (22 mm) | C1418A |
