Overhaul Kit IR 15T2 Replacement
Regular price
₹0.00
Overhaul Kit IR 15T2 Replacement
Regular price
₹0.00
Overhaul Kit IR 15T2 Replacement

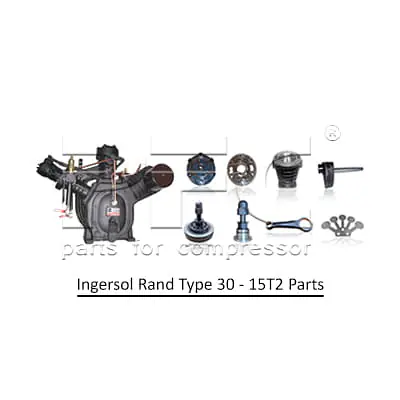

Overhaul Kit for Ingersoll Rand Type 30 Air Compressor Model 15T2 replacement from India.
Product
Overhaul Kit VK-OK15T2 IR 15T2 Replacement
Contain of Kit
| No. | Description | Part No. | QTY |
| A | Gasket Set | 30423339 | -- |
| Gasket, Airhead | 30294284 | 1 | |
| Gasket, Lp Airhead | 30294326 | 1 | |
| Gasket, Airhead | 30294508 | 2 | |
| Gasket, Manifold | 30294870 | 3 | |
| Gasket, Shaft End Cover | 30294961 | 1 | |
| Gasket, Frame End Cover | 30439285 | 1 | |
| Gasket, Cylinder | 32221384 | 3 | |
| Gasket, Airhead Center | 37007754 | 1 | |
| Gasket, Airhead Center | 37047156 | 1 | |
| O-ring | 95022158 | 1 | |
| O-ring | 95022695 | 1 | |
| Gasket, Copper | 95674750 | 2 | |
| B | Ring/Gasket Set | 32226342 | -- |
| Washer, Copper - Pilot Valve Shim | 30346597 | 2 | |
| O - Ring - Thrust Pin | 95210225 | 1 | |
| O - Ring - Oil Fill Plug | 95022158 | 1 | |
| Gasket - Frame End Cover | 30439285 | 1 | |
| Gasket - Shaft End Cover | 30294961 | 1 | |
| Seal, Shaft Oil | 32204562 | 1 | |
| Gasket, Cylinder Flange | 30294235 | 3 | |
| Set - Ring 3rd Stage | 37138146 | 1 | |
| Gasket, Crosshead / Cylinder | 30294508 | 1 | |
| Set Ring - 2nd Stage | 32194276 | 1 | |
| Set Ring - 1st Stage | 32194144 | 1 | |
| Gasket Intercooler Manifold | 30294870 | 3 | |
| C | Valve Gasket Set | 32133951 | -- |
| Gasket, Airhead - 3rd Stage | 30294284 | 1 | |
| Spring, Valve - 3rd Stage Discharge | 30221584 | 1 | |
| Plate, Valve - 3rd Stage Discharge | 30215925 | 1 | |
| Plate, Valve - 3rd Stage Inlet | 30215834 | 1 | |
| Spring, Valve - 3rd Stage Inlet | 30221493 | 1 | |
| Gasket, Top/bottom Airhead - 2nd Stage | 37007754 | 1 | |
| Gasket, Airhead - 2nd Stage | 30294508 | 2 | |
| Spring, Valve - 2nd Stage Discharge | 30221576 | 1 | |
| Plate, Valve -2nd Stage Discharge | 30215941 | 1 | |
| Plate, Valve - 1st Stage Disch & 2nd Stg Inlet | 30181499 | 2 | |
| Spring, Valve - 1st Stage Disch & 2nd Stg Inlet | 30221501 | 2 | |
| Plate Valve - 1st Stage Inlet | 30215891 | 1 | |
| Spring Valve - 1st Stage | 30221550 | 1 | |
| Gasket, Airhead - 1st Stage | 30294326 | 1 | |
| Gasket Top/bottom Airhead - 1st Stage | 37047156 | 1 | |
| D | Bearing/Conn Rod Kit | 32310062 | -- |
| Crankpin Bushing | 32295875 | 1 | |
| L/P Connecting Rod | 32003659 | 2 | |
| H/P Connecting Rod | 32262438 | 1 | |
| Ball Bearing | 32295701 | 1 | |
| Bearing W/Snap Ring | 95951273 | 1 | |
| E | Air Filter Element | 32012957 | 1 |
| Total | 60 |
