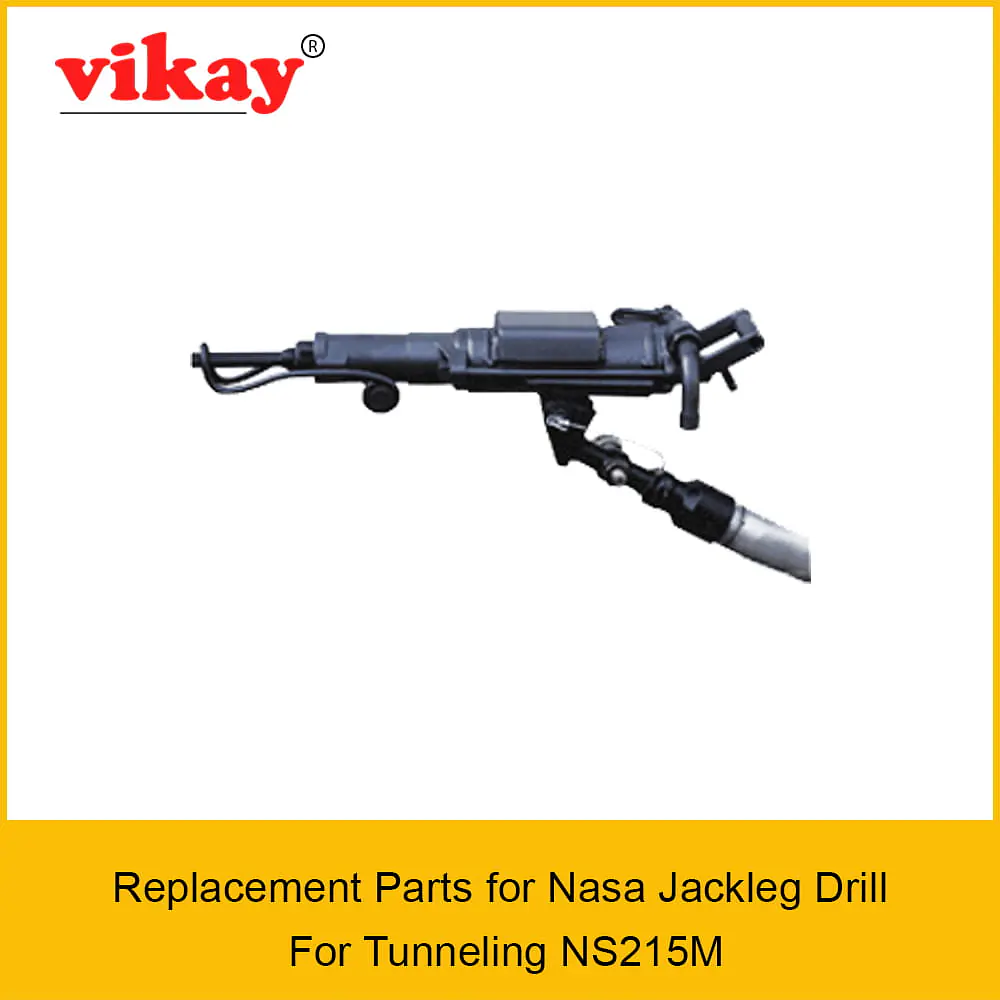

Replacement Parts for Nasa Jackleg Drill For Tunneling NS215M
Vikay Mining Equipments is a global supplier of new aftermarket replacement Parts for Replacement Parts for Nasa Jackleg Drill For Tunneling NS215M from India
Product
Nasa Jackleg Drill For Tunneling NS215M
| Cat Sl.No | Description | Nasa 215 Part Nos | Ref Part Nos | ||
| 1 | Side Rod Nut | 21501 | D2130 | ||
| 2 | Spade Handle | 21502 | B2154-2 | ||
| 5 | Water Stem Nut Copper Washer | 21504 | S21-50 | ||
| 6 | Back Head Spud Threaded 12mm | 21503 | HF-7581-123 | ||
| 7 | Water Tube | 21505 | S19-39 | ||
| 8 | Water Tube Rubber (small) | 21506 | S21-45 | ||
| 9 | Water Tube Cap Screw | 21507 | S21-42 | ||
| 10 | Water Tube Thrust Washer | 21508 | S24-46 | ||
| 11 | Water Tube Rubber (large) | 21509 | S21-44 | ||
| 12 | Side Rod | 21538 | C3102 | ||
| 13 | Back Head | 21510 | A1406 | ||
| 15 | Throttle Valve Handle,Nylon | 21517 | S21-24P | ||
| 17 | Throttle Valve Plunger | 21512 | S21-29 | ||
| 18 | Throttle Valve Spring | 21511 | S21-30 | ||
| 19 | Ratchet Ring | 21523 | C2698L | ||
| 20 | Pawl | 21521 | S21-33 | ||
| 21 | Pawl Plunger(STEEL) | 21520 | S21-34P | ||
| 22 | Pawl Plunger Spring | 21519 | D1611 | ||
| 23 | Rifle Bar | 21518 | C2023L | ||
| 24 | Valve Box | 21524 | A1446A | ||
| 25 | Valve | 21525 | C2697A | ||
| 26 | Valve Plug | 21526 | B2108A | ||
| 27 | Throttle Valve | 21513 | B2147 | ||
| 28 | Air Stem Nut Copper Washer | 21515 | S21-91 | ||
| 29 | Air Stem Nut | 21516 | S21-38 | ||
| 30 | Air Bend | 21514 | S21-37A | ||
| 31 | Rifle nut | 21527 | D1623 | ||
| 32 | Piston | 21528 | B2107 | ||
| 33 | Valve Box Locating Pin | 21522 | D2482 | ||
| 34 | Cylinder with Muffler | 21529 | A1404M2 | ||
| 35 | Cylinder Lug Bush | 21530 | C1101M | ||
| 36 | Front Cylinder Washer Liner | 21531 | C6521 | ||
| 37 | Front Cylinder Washer only | 21532 | B5474 | ||
| 38 | Chuck nut | 21533 | S19-7 | ||
| 39 | Chuck | 21534 | B2148 | ||
| 40 | Front Head (Economy) | 21535 | A4994 | ||
| 41 | Steel Retainer Std | 21539 | B2798L | ||
| 43 | Chuck Bush 7/8" 22mm | 21537 | C2701 22mm | ||
| 43A | Chuck Bush 7/8" 25mm | 21537A | C2846 25mm | ||
| 44 | Steel Retainer Bush | 21536 | D2146A |
