Assembly head Frame & Distance Piece For Ingersoll Rand - Model 7 x 5 LUB
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for Assembly head Frame & Distance Piece For Ingersoll Rand - Model 7 x 5 LUB from India
Product
- Page 1

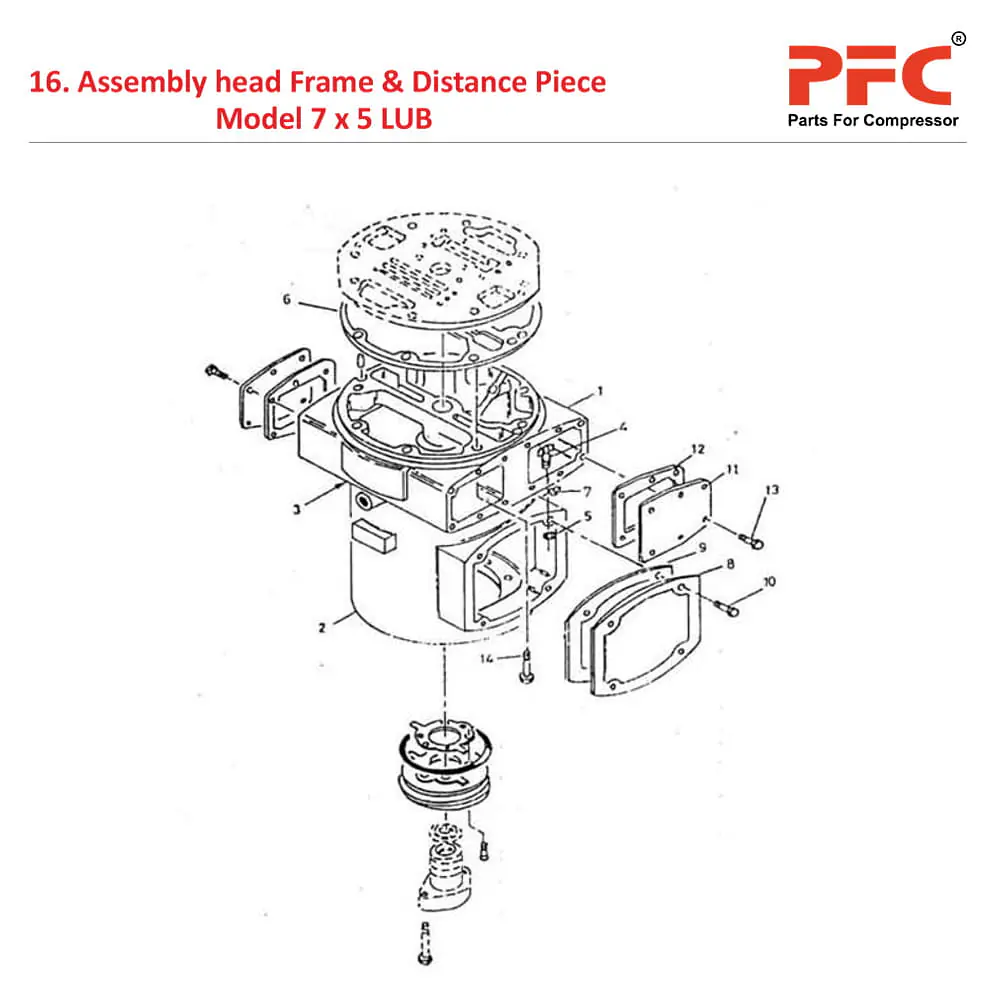

ASSEMBLY HEAD FRAME & DIST. PIECE
| S.No | Description | Ref Part Nos |
| 1 | HEAD FRAME | 42002816 |
| 2 | DISTANCE PIECE | 42003145 |
| 3 | GASKET DISTANCE PIECE | 40514507 |
| 4 | STUD 3/4" X 3-1/4" | 95737417 |
| 5 | NUT HEX 3/4" | 95077822 |
| 6 | GASKET FRAME HEAD | 39542113 |
| 7 | PLUG PIPE SQ. HD 1/4" | 95033593 |
| 8 | COVER DISTANCE PIECE | 30184261 |
| 9 | GASKET COVER DISTANCE PIECE | 30562698 |
| 10 | SCREW CAP HEX 1/2" X 1" | 95104147 |
| 11 | COVER VALVE | 37087954 |
| 12 | GASKET COVERÂ | 39486030 |
| 13 | SCREW CAP HEX 1/2" X 1" | 95104147 |
| 14 | SCREW CAP FRAME HEAD | 30556963 |
