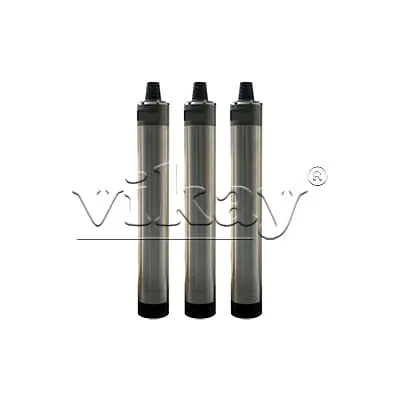

8" High Pressure DTH Hammer - VD80D x 177
Vikay is a global supplier of 8" High Pressure DTH Hammer Model VD80D x 177 from India.
Technical Details
| Model | VD80D x 177 |
| Outer Diameter | 177mm (6.96") |
| Hammer Length | 1190mm (46.85") |
| Hammer Weight | 140kg (308 lbs) |
| Coupler Thread Size | 4 1/2 API | Reg Pin |
Air Consumption, cmf
| 150psi | 250psi | 350psi |
| 525 | 980 | 1550 |
Air Consumption, m3/min
| 10 bar | 18 bar | 24 bar |
| 15 | 28 | 44 |

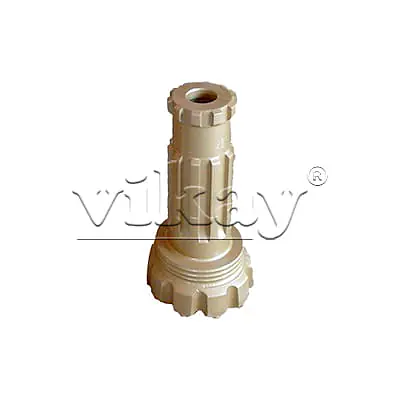

| Bit Shank |
| DHD-380 |
| No Foot Valve Required |
| Suitable Bit Size |
| 8" To And Above |
Since aprovement are made from time to time, the illustration and specifications are subject to change without notice
