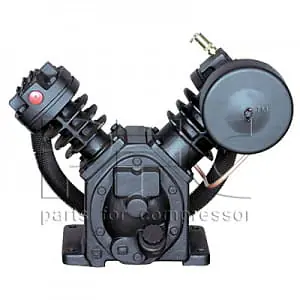

3 HP Two Stage Bare Air Compressor Pumps Model VK 2390
PFC Parts for Compressor is a global supplier of 3 HP Two Stage Reciprocating Bare Air Compressor Pumps Model VK 2390, from India
The Two stage Reciprocating Bare compressors Pumps are rugged packages for use either as a total air system for small industrial installations or a backup system in major installation. These compressors are used where the pressure requirement is more than 7kg / cm2 & up to 14kg/ cm2 maximum air pressure.
| Model | VK 2390 |
| Motor hp | 3 |
| No. of Cylinders | 2 |
| Piston Displacement cfm | 11.25 |
| Maximum Pressure | 175psig | 12.3Kg/cm²g |
| Air Receiver (Ltr) | 150 | 225 |
Scope of Supply
Bare Pump (Compressor / Vacuum Pumps) with Flywheel, without any Accessories.
# Parts are interchangeable IR Type 30 Model 2340
Since approvement are made from time to time, the illustration and specifications are subject to change without notice
